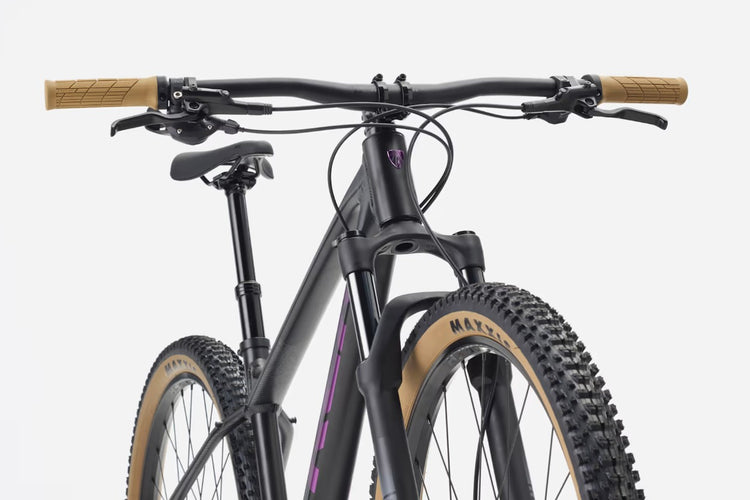

Trek Marlin 7 (Gen 3) Hardtail Mountain Bike 2026

Marlin 7 is your best friend on the trail and wherever else you roll thanks to its confidence-boosting trail geometry. It finds the perfect balance between price and performance with a RockShox suspension fork that makes quick work of rocks and bumps in your path, and tons of gears from the SRAM NX Eagle 12-speed drivetrain.

SPECIFICATIONS:

Frameset
*Frame
Size: XS
Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
Size: S , M , ML , L , XL , XXL
Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
*Fork
Size: XS , S
RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
Size: M , ML , L , XL , XXL
RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel

Wheels
Hub front: Formula DC-20 LW, alloy, 6-bolt, 100x5mm
Hub rear: Formula DC-22LW, 6-bolt, Shimano 8/9/10 freehub, 135x5mm
Skewer rear
173x5mm QR
*Rim
Size: XS , S , M , ML , L , XL , XXL
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve
Size: M , ML , L , XL , XXL
Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, Presta valve
*Tire
Size: XS , S
Maxxis Rekon, tubeless ready, EXO casing, folding bead, 60tpi, 27.5x2.40''
Size: M , ML , L , XL , XXL
Maxxis Rekon, tubeless ready, EXO casing, folding bead, 60tpi, 29x2.40''
Rim strip: Bontrager TLR

Drivetrain
Shifter: SRAM SX Eagle, 12 speed
Rear derailleur: SRAM NX Eagle, 12 speed
*Crank
Size: XS , S , M
SRAM SX Eagle, 30T steel ring (49mm chainline), 170 mm length
Size: ML , L , XL , XXL
SRAM SX Eagle, 30T steel ring (49mm chainline), 175 mm length
Bottom bracket: Truvativ Powerspline, 73mm, threaded cartridge, 118mm spindle
Cassette
SRAM PG-1210 Eagle, 11-50, 12 speed
Chain
SRAM SX Eagle, 12 speed
Pedal
VP-536 nylon platform

Components
Saddle: Bontrager Verse Short, stainless steel rails
*Seatpost
Size: XS , S
TranzX JD-YSI34, 100mm travel, internal routing, 31.6mm, 350mm length
Size: M
TranzX JD-YSI34, 125mm travel, internal routing, 31.6mm, 405mm length
Size: ML , L
TranzX JD-YSI34, 150mm travel, internal routing, 31.6mm, 456mm length
Size: XL , XXL
TranzX JD-YSI34, 170mm travel, internal routing, 31.6mm, 500mm length
*Handlebar
Size: XS
Bontrager alloy, 31.8mm, 5mm rise, 690mm width
Size: S
Bontrager alloy, 31.8mm, 15mm rise, 720mm width
Size: M , ML , L , XL , XXL
Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Grips
Trek Line Comp, nylon lock-on
*Stem
Size: XS , S
Bontrager Comp, 31.8mm, 7 degree, 35mm length
Size: M , ML , L
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
Size: XL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
Size: XXL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length
Headset
Semi-integrated, 1-1/8"
Brake: Shimano MT200 hydraulic disc
*Brake rotor
Size: XS , S , M , ML , L , XL , XXL
Shimano RT26, 6-bolt, 160mm
Size: M , ML , L , XL , XXL
Shimano RT26, 6-bolt, 180mm

Weight
Weight
M - 14.15 kg / 31.2 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
